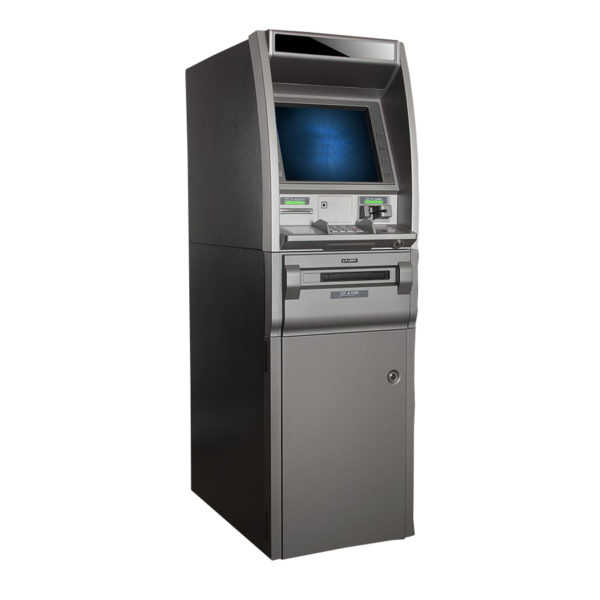

Description
User-interface
- 15″ TFT LCD display, voice guidance
- 8 FDKs and / or touch display
- EPP keypad be compliant with PCI, vandal resistance
- Loudspeakers
Card Reader
- Motorized hybrid or dip card reader, EMV certified
- Support magnetic/smart card
- Card retracted if not removed
- Card returned if power failed
Dispenser
- Frictional bundle delivery
- Max. 60 notes per bundle
- Dispensing speed: 7 notes per second
- 2-4 cassettes, up to 3000 notes per cassette
- Reject & retract bin
- Cassette lock (optional)
Control Unit
- Intel Core i3/i5/i7 Duo 3.3CPU,16G RAM
- 500G HDD, DVD ROM (optional)
- Operating system: Windows XP/7/10
Printer
- Receipt printer: 76mm thermal graphic printer
- Journal printer: 80mm dot matrix or thermal printer
Communication
- Standard TCP/IP
- Optional: dial-up, wireless, X.25, SNA/SDLC
Security
- UL291 Standard level 1
- Dial combination lock mechanism
- Fraudulent device inhibitor (FDI)
- EPP shield
- Privacy filter (optional)
- Customer awareness mirror
- Built-in cameras
- Integrated media entry/exit indicators
Optional
- Barcode reader
- Fingerprint reader
- Contact-less card reader
- Heat booster
- Electronic journal
Operating Environment
- Voltage: 100V-240V AC, 50/60Hz
- Temperature: 0 oC to 40 oC (without heat booster)
- -35 oC to 40 oC (with heat booster)
- Humidity: 20% to 95% Non-condensing
Dimensions and Weight
- Dimension: 1595mm X 500mm X 874mm (H x W x D)
- Weight: approx. 400kg
